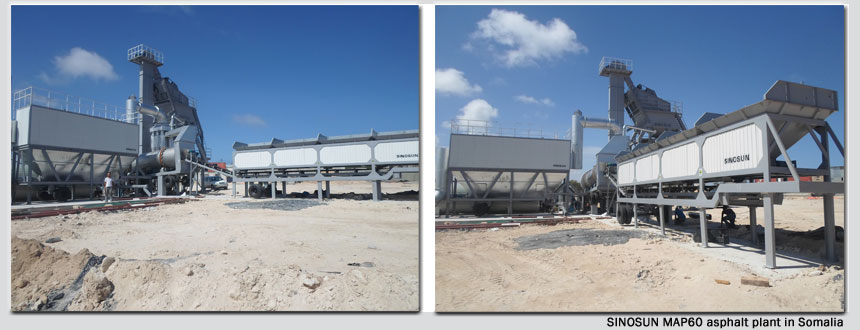

Mobile Asphalt Mixing Plant in Somalia- MAP800



Installation Time: 2015

Location: Somalia

Equipment: MAP800 mobile asphalt mixing plant



Client Requirment:

The customer is a road contractor from Somalia. They had a requirement of 60 TPH of mobile asphalt mixing plant.

We offered our MAP800 asphalt mixing plant



Main technical parameters

1. Capacity: 48-64t/h (under standard working condition)

2. APPLICATIONS: coarse grain bitumen mixture, medium-grain bitumen mixture, fine grain bitumen mixture and sand grain bitumen mixture.

3. Aggregate weighing accuracy: ±0.5%

4. Bitumen weighing accuracy: ±0.25%

5. Hot material temperature: 140-160( up to 180℃), adjustable

6. Stability of hot material temperature: ±5℃

7.Screening efficiency:≥95%, can satisfy the demands of various kinds of bituminous mixtures and eliminate large aggregates.

8. Mixing cycle time: 40-60s, set up freely

9. Dust removing efficiency: dust emission level≤100mg/Nm3

10. General power consumption: ~340Kw

11. Controlling mode: full automatic operation, semi-automatic、manual operating for option.

12. Hot material discharging height: 3700mm×3600mm(height×width)

13. Overall dimension: maximum height 40m, maximum width 35m.
