Installation Time: 2021
Location: Moldova
Capacity/Equipment: 10TPH / Emulsion Bitumen Plant

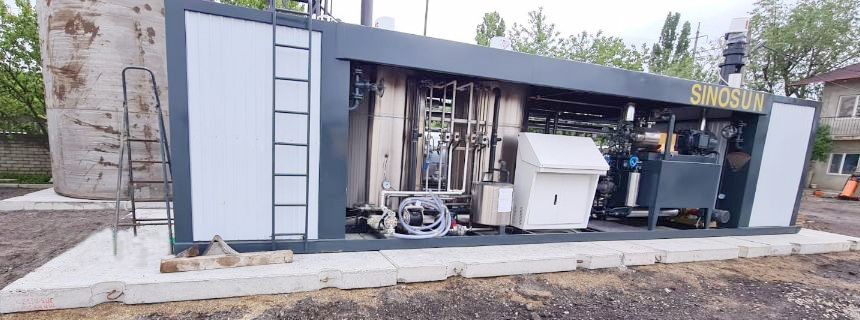

The SINOSUN RH10 emulsion bitumen plant was installed and run into use smoothly in Moldova now that had delivery from China sea port on the March, 2021.
Emulsion bitumen plants are crucial in the production of bitumen emulsions, which are widely used in road maintenance and road construction application as a binder, surface dressing, and priming etc. bitumen emulsion is oil in water type of emulsion where bitumen is dispersion in water.
Emulsified bitumen plants typically consist of several key components:
Bitumen Storage Tanks: These tanks store the bitumen, which is heated to the required temperature for emulsification.
Water Tanks: Water is a crucial component in bitumen emulsion production. Water tanks store the required amount of water for the emulsification process.
Chemical Tanks: Various chemicals, such as emulsifiers and stabilizers, are added to the bitumen-water mixture to form a stable emulsion. Chemical tanks store these additives.
Emulsification Unit: This unit is responsible for mixing the bitumen, water, and additives together to form the emulsion. It typically consists of a colloid mill or a high-shear mixer.
Control System: An automated control system regulates the various parameters of the emulsion production process, such as temperature, pressure, and flow rates.
Pumping System: Pumps transfer the bitumen, water, and additives from their respective storage tanks to the emulsification unit and then to storage tanks for the finished emulsion.
Heat Exchangers: Heat exchangers are used to heat or cool the bitumen and water to the desired temperatures for emulsification.
Storage Tanks for Finished Emulsion: Once the emulsion is produced, it is stored in tanks until it is ready to be transported to the construction site.
Equipment Technical Parameters

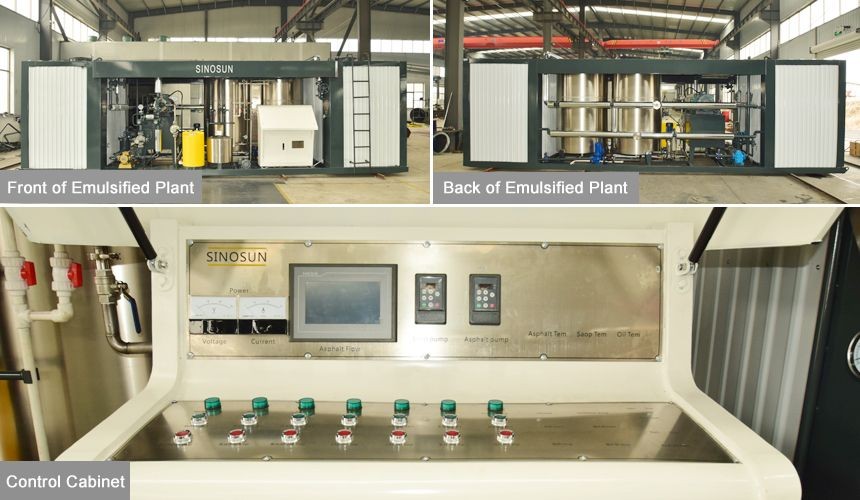

Model: RH10 Emulsion Bitumen Plant
Production Capacity: 10T/H (Rated capacity)
Emulsion Fineness: More than 90% smaller than 5μm
Total Power: 54KW
Overall Size: 7000*2250*2450mm
Total Weight: Around 7T
Our company is engaged in manufacturing of bitumen emulsion plant (asphalt emulsion) and PMB polymer modified bitumen plants. We have installations and good projects in Australia, Pakistan, Ghana, Somalia, Malaysia, and so on.
SINOSUN Machinery is a professional road construction machinery manufacturer and provider since 2004. We provide the one-stop service and turn-key solutions for our customers. Welcome to contact us for get more information.
