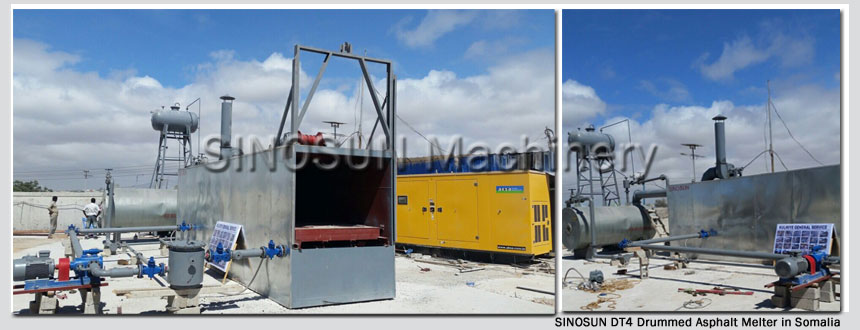

Bitumen Melting Machine in Somalia-DT4
Installation Time: 2015
Location : Somalia
Equipment: DT4 Bitumen Melting Machine
Client Requirements:
The customer is a road contractor in Somalia. Interacted with an understood that the requirement was of 4 TPH capacity Bitumen Melting Machine.
Solution Offered:
We offered them our model DT4 Bitumen Melting Machine. Few spares were given to the customer as a package.
Main Characteristics of this Bitumen Melting Machine
1. Environmental friendly: closed structure and no pollution.
2. Energy saving: using the heat of waste gas(320～450℃) emission from thermal oil furnace to heat (final exhaust temperature about 150℃). Compared with the open asphalt dumping equipment, the totally closed type and save more 50% energy.
3. Asphalt is not hanging barrels: This equipment using 320 ~ 450℃ waste gas heat the barrel wall directly, so the asphalt dumping very clean to avoid the asphalt waste and pollution.
4. Automatic slag removal: the equipment's structure is advanced, with the internal self-discharging and external slag removal function, and has solved the technical problem in the world.
5. Adaptable: applicable to various kind of imported and domestic models, and the deformation of asphalt barrels will not affect production.
6. Good dehydration property: using large displacement asphalt pump for internal circulation, stirring, steam overflow, draught fan sucked into air and de-watering by negative pressure.
7. Safe and reliable: with automatic control system, imported automatic ignition burner, automatic control according to the oil temperature and corresponding monitoring instruments.
8. Easy to move: the whole machine adopts parts assembly, move easily and assembly quickly.
Parameters of DT4 Bitumen Melting Machine
Main configuration of DT4 Bitumen Melting Machine
Location : Somalia
Equipment: DT4 Bitumen Melting Machine
The customer is a road contractor in Somalia. Interacted with an understood that the requirement was of 4 TPH capacity Bitumen Melting Machine.
Solution Offered:
We offered them our model DT4 Bitumen Melting Machine. Few spares were given to the customer as a package.
Main Characteristics of this Bitumen Melting Machine
1. Environmental friendly: closed structure and no pollution.
2. Energy saving: using the heat of waste gas(320～450℃) emission from thermal oil furnace to heat (final exhaust temperature about 150℃). Compared with the open asphalt dumping equipment, the totally closed type and save more 50% energy.
3. Asphalt is not hanging barrels: This equipment using 320 ~ 450℃ waste gas heat the barrel wall directly, so the asphalt dumping very clean to avoid the asphalt waste and pollution.
4. Automatic slag removal: the equipment's structure is advanced, with the internal self-discharging and external slag removal function, and has solved the technical problem in the world.
5. Adaptable: applicable to various kind of imported and domestic models, and the deformation of asphalt barrels will not affect production.
6. Good dehydration property: using large displacement asphalt pump for internal circulation, stirring, steam overflow, draught fan sucked into air and de-watering by negative pressure.
7. Safe and reliable: with automatic control system, imported automatic ignition burner, automatic control according to the oil temperature and corresponding monitoring instruments.
8. Easy to move: the whole machine adopts parts assembly, move easily and assembly quickly.
| No. | Item | Standard value | Unit | Remark |
| 1 | Capacity | 4 | t/h | Ambient temperature of barrel matrix asphalt not lower than 20℃ |
| 2 | Finished asphalt temperature | 120～140 | ℃ | |
| 3 | Barrels in each pallet | 24 | pieces | All kinds of Barrels of domestic and international |
| 4 | Heat capacity of thermal oil heating furnace | 50×104 | kcal/h | |
| 5 | Temperature of thermal oil | 200～240 | ℃ | |
| 6 | Total power | 26 | KW | Diesel burner |
| 7 | Oil pool capacity | 12000 | L | |
| 8 | Total weight | 21000 | kg | |
| 9 | Overall dimension (length×width×height) |
7500×2250×2560 | mm | |
| 10 | Dimension of thermal oil heating furnace (length×width×height) |
5000×1700×2300 | mm |
Main configuration of DT4 Bitumen Melting Machine
| No. | Name | Specification | Q’ty | Remark |
| 1 | Loaded bucket car | 1 | ||
| 2 | Reducer | WHX150-50-1 | 1 | |
| 3 4 |
Motor Crane gate hoist |
Y112M-6(2.2kW) | 1 | |
| HK-300 | 1 | 0.65kW | ||
| 5 | Induced draft fan | Y5-47-12NO4C | 1 | Including 2 belts and 1 belt cover |
| 6 | Motor | Y100L-2 (3kW) | 1 | |
| 7 | Chimney & smoke tube | 1 | ||
| 8 | Three screw asphalt pump | 3QGB-90×2-46 | 1 | 15KW |
| 9 | 3-way insulation valve | 3″ | 1 | DN80 |
| 10 | Asphalt insulation pipeline system | 1 | ||
| 11 | Staircase | 1 | ||
| 12 | Slag removal system | Asphalt filter | 1 | Including 1 set of Slag removal device and 2 filter element(1 for spare) |
| 13 | Tank level control system | 1 | Fully displayed | |
| 14 | Electric control cabinet | 1 | Including full set of cable, sensors, stopper |
