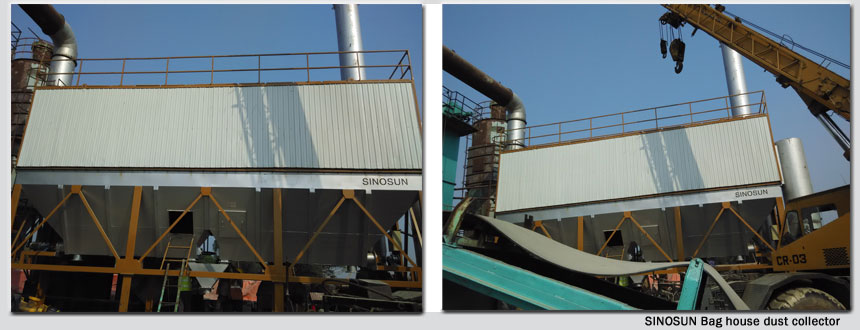

Bag House Dust Collector in Bengal
Installation Time: 2015
Construction site: Bengal
Equipment: Bag house dust collector/ bag filter
The customer is a road contractor from Bengal.
The customer need a high quality Bag house dust collector suited their asphalt mixing plant.
Solution Offered:
This Bag house dust collectors can achieve a collection efficiency of more than 99% for very fine particles. This is due to dust particles loading on the filtration media, helping to block other particles as they approach in the air stream.
Features:
1.Increasing the pressure difference on both ends, improving the through capacity of thermal, improve the heating, the effect of drying and efficiency of heat energy utilization of drying drum; lower emission concentration, which meets the national environmental requirements.
2.The system is consisted of primary dust collecting system and secondary dust collecting system. Primary collecting system is for larger dust particles, reducing the pressure of secondary collecting system and extending the working life. The larger dust particles can directly be sent into the hot aggregate elevator.
3.The secondary dust collecting system collects the dust again and lower the dust emission concentration, which effectively improving the environmental requirements. The system adopts the high-voltage pulse cleaning method, with less the residual dust left. All the dust can be conveying into recycling filler silo by recycling filler conveying device for reusing or discharges together. The emission concentration is no more than 20mg/Nm3.
4.The bag adopts high efficiency filter materials produced by DuPont. And the wear and tear is low and the working life is long.
Installation & Commissioning:

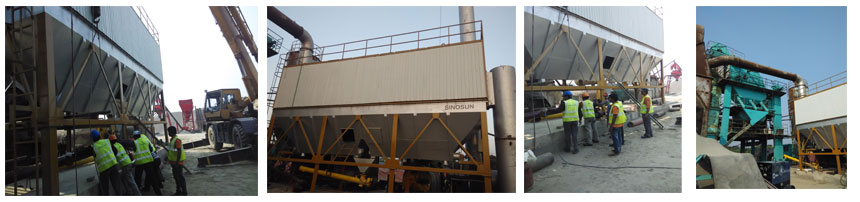

One mechanical technician from SINOSUN visited to assist the calibration of the plant. Onsite operator training for running the plant and trouble shooting was also given.
Configuration of Bag house dust collector:
Construction site: Bengal
Equipment: Bag house dust collector/ bag filter
Client Requirement:The customer is a road contractor from Bengal.
The customer need a high quality Bag house dust collector suited their asphalt mixing plant.
Solution Offered:
This Bag house dust collectors can achieve a collection efficiency of more than 99% for very fine particles. This is due to dust particles loading on the filtration media, helping to block other particles as they approach in the air stream.
Features:
1.Increasing the pressure difference on both ends, improving the through capacity of thermal, improve the heating, the effect of drying and efficiency of heat energy utilization of drying drum; lower emission concentration, which meets the national environmental requirements.
2.The system is consisted of primary dust collecting system and secondary dust collecting system. Primary collecting system is for larger dust particles, reducing the pressure of secondary collecting system and extending the working life. The larger dust particles can directly be sent into the hot aggregate elevator.
3.The secondary dust collecting system collects the dust again and lower the dust emission concentration, which effectively improving the environmental requirements. The system adopts the high-voltage pulse cleaning method, with less the residual dust left. All the dust can be conveying into recycling filler silo by recycling filler conveying device for reusing or discharges together. The emission concentration is no more than 20mg/Nm3.
4.The bag adopts high efficiency filter materials produced by DuPont. And the wear and tear is low and the working life is long.
Installation & Commissioning:
One mechanical technician from SINOSUN visited to assist the calibration of the plant. Onsite operator training for running the plant and trouble shooting was also given.
| Description | No. | Item | Model | Qty | Brand |
| Bag house dust collector |
1 | Bag house frame | XMC448A-CK | 1set | Hebei HuanKe |
| 2 | Top protective fense | -------------- | 1set | SINOSUN | |
| 3 | Dedust box | -------------- | 1set | SINOSUN | |
| 4 | Dust box | -------------- | 1set | SINOSUN | |
| 5 | Supporting leg | 1set | |||
| 6 | Electro-magnetic Pulse Valve | DMF-T1 | 1set | Shanghai BFEC | |
| Screw Conveyor | 1 | Φ219x3000 | BWD2-17-3 | 1set | Zhengzhou DSX |
| Tube for dust collector |
1 | From primary dust collector to shifting box | -------------- | SINOSUN | |
| 2 | shifting box | -------------- | 1set | SINOSUN | |
| 3 | From air outlet to air blower | -------------- | 1set | SINOSUN | |
| 4 | From air blower to reducer | -------------- | 1set | SINOSUN | |
| 5 | Chimney | -------------- | 1set | SINOSUN | |
| Pulse control instrument | 1 | -------------- | 1set | SINOSUN | |
| Air blower |
1 | Air blower mainframe | YB5-48 | 1set | Hebei |
| 2 | Motor | WN-75 | 1set | WN | |
| 3 | linear actuator | -------------- | 1set | Shanghai | |
| 4 | Auto voltage reducing starting cabinet | 1set | SIEMENS | ||
| Air compressor | 1 | Air compressor | UP5-15-10 | 1set | Ingersoll Rand |
